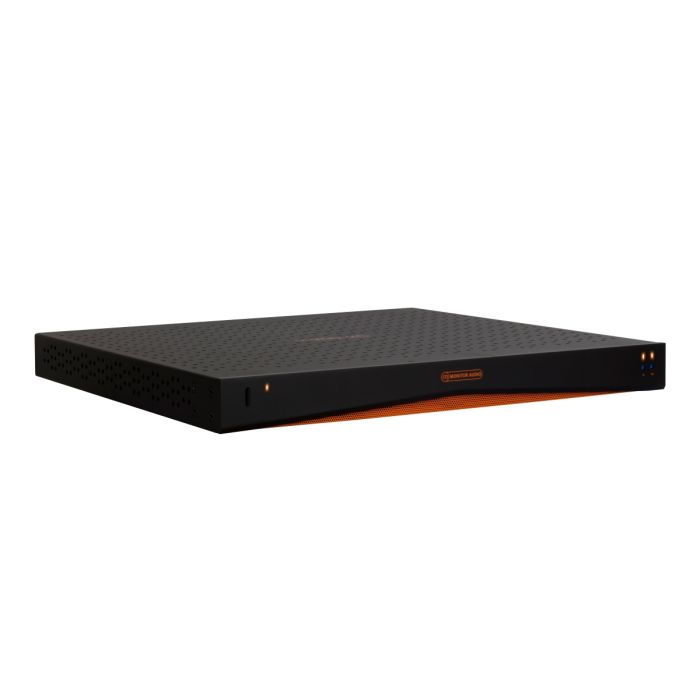

Monitor Audio IA200-2C Installation Amplifier
Monitor Audio IA200-2C Installation Amplifier. A slim 1U rack height, it universally fits into most racks whilst delivering 93% energy efficiency. The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. A visual match for the rest of the Monitor Audio Installation Amplifier line, the IA200-2C is ready for any project.
Works with –
Monitor Audio Warranty:
Monitor Audio Amplifiers carry a 5 Year Warranty
'Connect' IP Control
Yes
Channel Number
2 (1 Stereo Pair)
Power (W / Channel) | 4 ohms
200 W
Power (W / Channel) | 8 ohms
150 W
Power (W / Channel) | Bridge (8 ohms)
470 W (1CH)
Power (W / Channel) | 70V
N/A
Input Impedance
20 K ohms
Output Impedance (Loop RCA)
600 ohms
Input Sensitivity
100 mV / 1 W, 1230 mV – Full power
Maximum Input Voltage
2.9 V
Signal to Noise (SN:R)
-100 dB (20 Hz – 20 kHz)
Frequency Response
5 Hz – 50 kHz
Total Harmonic Distortion THD + N@1 KHz
0.03%
Rack Height
1U
IP Communication
TCP/IP (RJ-45 10/100 Base T)
Mains Operating Voltage
100 – 120 V @ 60 Hz
220 – 240 V @ 50 Hz
Fuse Rating
5 A (T5AL ~ 250VAC)
Standby Power Consumption
<0.5 W (green mode)
Networked Standby Power Consumption
<2 W
Dimensions (Without Feet (H x W x D))
42.4 x 438 x 427 mm (111/16x 171/4 x 1613/16")
Dimensions (With Feet (H x W x D))
52.8 x 438 x 427 mm (21/16x 171/4 x 1613/16")
Width (including rack brackets)
482 mm (19")
Weight
5.3 kg (11 lb 10 oz)
