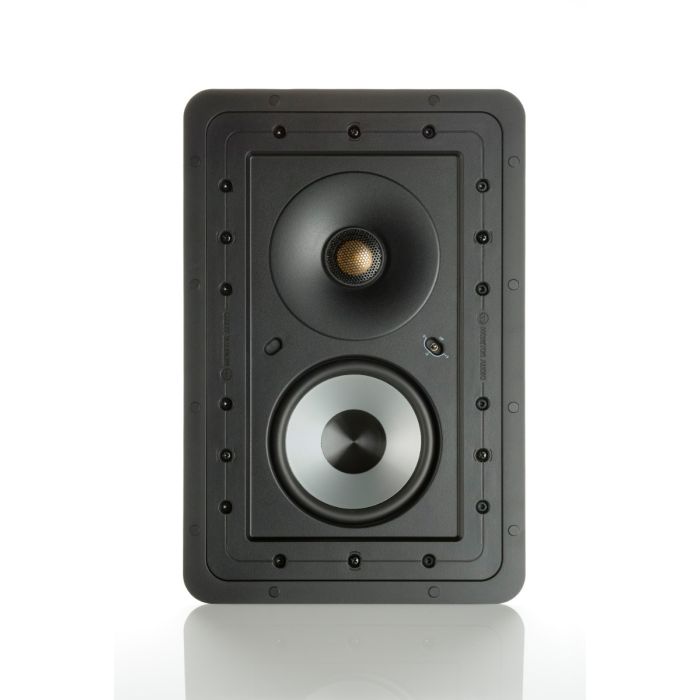

Monitor Audio CP-WT150 In-Wall Speaker
Monitor Audio CP-WT150 5" In-Wall Speakers - entry level offering high impact audio and discreet trimless design for smaller environments. This in-wall model features a 5” MMP®II bass driver, high frequency level adjustment (+3dB / 0dB / -3dB) and a pivoting C-CAM® tweeter.
Features:
- Pivoting C-CAM gold dome tweeter and MMPII bass driver.
- High overall efficiency.
- High frequency level adjustment (+/-3dB).
- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Monitor Audio Warranty:
Monitor Audio Custom Installation Speaker Series carry a Lifetime Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
requency Response
75 Hz - 25 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
85 dB
Maximum SPL
102.8 dBA
Power Handling (RMS)
50 W
Recommended Amplifier Requirements
20 - 50 W
Crossover Frequency
2.8 kHz @ 12 dB / Octave
Drive Unit Complement
2-Way
5” MMP II cone bass driver
1” C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Fixing Type
6 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic (RoHS2 Compliant)
Connection
Gold plated 'push' type terminals
Weight
2.65 kg (5 lb 14 oz)
Pre-Construction Bracket
WB6 Pre-Construction Bracket (Purple)
Overall Dimensions (H x W x D)
360.5 x 242 mm (143/16 x 91/2")
Overall Depth (Including Grille)
102 mm (4")
Cut-Out Hole Diameter
326 x 207 mm (1213/16 x 81/8")
Mounting Depth
96 mm (33/4")
